Managing Noise from Compressed Air Systems
Compressed air is essential in industrial operations, but it is also one of the most common sources of excessive workplace noise. Traditional open pipe and drilled air nozzles generate dangerously high sound levels, increase air consumption, and pose safety risks to personnel.
Air nozzle silencers, also referred to as engineered compressed air nozzles or safety air nozzles, are designed to dramatically reduce noise levels while maintaining or improving blowoff force. Memtech Acoustics specifies air nozzle silencers as part of broader noise control and safety strategies for manufacturing, processing, and industrial facilities.
Air nozzle silencers, also referred to as engineered compressed air nozzles or safety air nozzles, are designed to dramatically reduce noise levels while maintaining or improving blowoff force. Memtech Acoustics specifies air nozzle silencers as part of broader noise control and safety strategies for manufacturing, processing, and industrial facilities.
Air nozzle silencers are widely used in:
- Manufacturing and assembly lines
- Part blowoff and cleaning stations
- Cooling operations
- Drying and chip removal
- CNC machining and metalworking
- Food, beverage, and pharmaceutical processing
Product Types & Configurations
AIR GUNS & NOZZLE SILENCERS
EXAIR® Safety Air Guns
EXAIR Safety Air Guns are durable and comfortable to use. Each model uses an engineered air nozzle that provides superior performance by entraining large volumes of surrounding air.
Safe operation is assured along with low air consumption and noise levels. Airflow that exits the nozzle cannot be blocked, as required by OSHA standard 1910.242(b). There are six EXAIR Safety Air Guns: the VariBlast® Precision and Compact, Soft Grip, Heavy Duty, TurboBlast® and Super Blast.
Safe operation is assured along with low air consumption and noise levels. Airflow that exits the nozzle cannot be blocked, as required by OSHA standard 1910.242(b). There are six EXAIR Safety Air Guns: the VariBlast® Precision and Compact, Soft Grip, Heavy Duty, TurboBlast® and Super Blast.
Key Characteristics & Applications:
- Engineered safety air nozzles integrated into ergonomic air gun bodies
- Designed to significantly reduce compressed air noise at the point of use
- Meets OSHA dead-end pressure safety requirements
- Air amplification designs improve blowoff efficiency while reducing air consumption
- Ideal for part cleaning and blowoff stations, CNC machining and workstations, assembly, packaging, and inspection areas.
AIR GUNS & NOZZLE SILENCERS
EXAIR® Air Nozzles

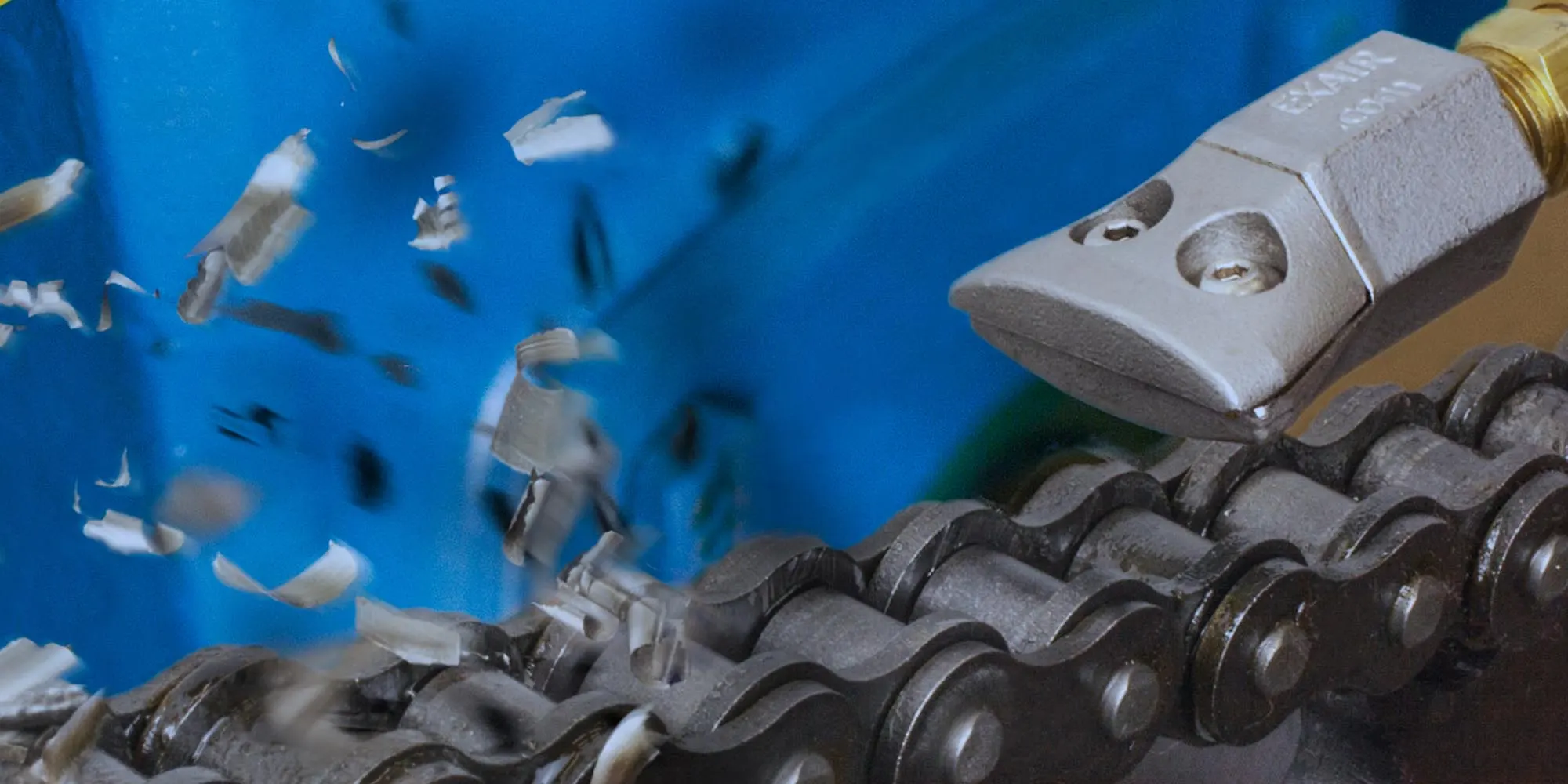

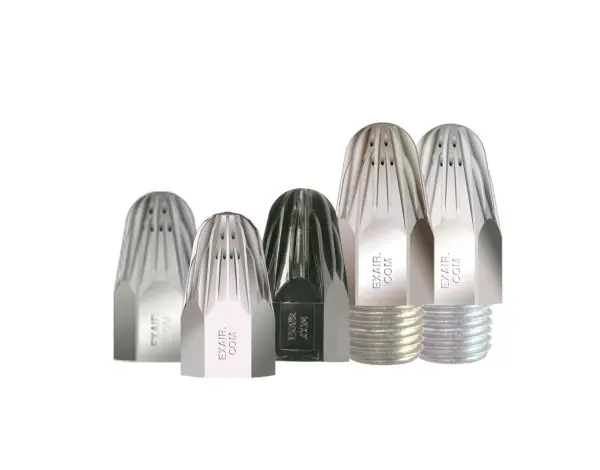

EXAIR Air Nozzles and Jets replace open pipes, copper tubes and drilled fittings. They pull in surrounding air, producing outlet flows up to 25 times the compressed air they consume, and can cut air use by as much as 80% compared with open pipes.
Key Characteristics & Applications:
- Engineered replacements for open pipes and drilled air fittings
- Multi-port and shaped outlet designs reduce turbulence and noise generation
- Open pipe blowoffs often exceed 100 dBA. In EXAIR’s test, a Super Air Nozzle measured 74 dBA at the same pressure.
- Offered in multiple spray patterns including point, flat fan, and wide coverage
- Ideal for conveyor belt and material handling systems, cooling of components and processes, drying after washing or rinsing operations

AIR GUNS & NOZZLE SILENCERS
EXAIR® Silencing Mufflers
Air exhausting from cylinders, valves and other air-powered equipment adds to work-area noise. EXAIR offers four types of silencing mufflers for those exhaust ports:
- Reclassifying mufflers: the line’s best noise performance, and they help remove oil mist from the exhaust air. Available 1/8 NPT through 1 NPT, with replacement elements.
- Straight-through mufflers: a corrosion-resistant aluminum shell lined with sound-absorbing foam.
- Heavy duty mufflers: internal stainless steel screens that protect valves and cylinders.
- Sintered bronze mufflers: a low-cost option for new and existing exhaust ports, with less noise control and no oil removal.
Send us the port size and the equipment, and we will match the muffler type.

AIR GUNS & NOZZLE SILENCERS
Choosing an Industrial Safety Air Gun
The right gun depends on how much force the job needs. EXAIR rates its six Safety Air Guns by airflow and blowing force (force measured 12 inches from the target at 80 PSIG):
- VariBlast® Precision: low airflow, force up to 8.1 ounces. Lightweight thermoplastic body with a variable flow trigger, for delicate parts and close work.
- VariBlast® Compact: low to medium airflow, force up to 1 pound, with a one-finger push-button trigger and adjustable airflow.
- Soft Grip: medium to high airflow, force up to 3.3 pounds, padded grip and full-finger trigger.
- Heavy Duty: medium to high airflow, force up to 3.3 pounds, cast aluminum body with a rubber grip.
- TurboBlast®: very high airflow, force up to 23 pounds.
- Super Blast: very high airflow, force up to 23 pounds, for large parts and heavy debris.
Every model meets OSHA requirements for noise and dead-end pressure. Tell us the part, the debris and your supply pressure, and we will match the gun and nozzle.

AIR GUNS & NOZZLE SILENCERS
Open Pipes vs. Engineered Nozzles: Noise, Air and OSHA
Noise exposure. Open pipe and copper tube blowoffs often exceed 100 dBA. Under OSHA 29 CFR 1910.95, 100 dBA is allowed for only 2 hours a day, against 8 hours at 90 dBA. In EXAIR’s test at 80 PSIG, a Super Air Nozzle measured 74 dBA.
Dead-end pressure. OSHA 1910.242(b) limits compressed air used for cleaning to 30 PSIG when the outlet can be blocked. An open pipe, tube or drilled hole above 30 PSIG does not meet it. Engineered nozzles are built so the airflow cannot be dead-ended, so they can run at full supply pressure safely.
Air use. A 1/8 inch open pipe at 80 PSIG uses about 70 SCFM. An EXAIR Mini Super Air Nozzle doing the same job uses about 10 SCFM. Engineered nozzles can cut air use by as much as 80%.
OSHA permissible noise exposure (29 CFR 1910.95):
- 90 dBA: 8 hours per day
- 95 dBA: 4 hours per day
- 100 dBA: 2 hours per day
- 105 dBA: 1 hour per day
- 110 dBA: 30 minutes per day

AIR GUNS & NOZZLE SILENCERS
Chip Shields for CNC Blowoff
Blowing chips and coolant off machined parts throws debris back at the operator. Polycarbonate chip shields mount on the gun to block flying chips and coolant splash, and they help meet OSHA 1910.242(b) for safe use of compressed air. Chip shields fit the VariBlast Precision and Compact, Soft Grip and Heavy Duty guns, with or without an aluminum extension, and can be retrofitted to guns already in use.
AIR GUNS & NOZZLE SILENCERS
EXAIR® Super Air Knife
The EXAIR Super Air Knife delivers a uniform, laminar sheet of air across its full length for blowoff, drying, cleaning and cooling. It pulls in surrounding air at a 40:1 ratio, so it moves more air with less compressed air, and it is the quietest of EXAIR's three air knife styles.
Key Characteristics & Applications:
- Uniform, laminar airflow across the full length of the knife
- 40:1 air amplification: surrounding air is entrained, so less compressed air does the work
- EXAIR publishes a sound level of 69 dBA at 80 PSIG, measured 3 ft away, the quietest of its three air knife styles
- Lengths from 3" to 108" in aluminum and stainless steel, and 3" to 54" in PVDF
- Common uses include part drying and cleaning, pre-paint blowoff, environmental separation and scrap removal on converting lines
The Memtech Acoustics Advantage.
Data-Driven Design
Our recommendations are based on measured acoustic data, not generic assumptions.
System Integration Expertise
We match nozzle, gun and supply pressure to the blowoff task so force goes up while air use and noise go down.
Long-Term Reliability
Cast aluminum gun bodies and stainless steel or PEEK nozzles hold up to continuous industrial duty.
Material Procurement
Direct access to the full range of safety air guns, nozzles, extensions and chip shields for simplified purchasing.
Local Turnkey Implementation
Installation coordinated in select regions, with selection support for every location.
Performance Verification
Optional field measurement and tuning post-installation.

AIR GUNS & NOZZLE SILENCERS
Material & Construction Options
To match environmental and regulatory requirements, air nozzle silencers are available in multiple materials:
- Zinc-Aluminum Alloy or Aluminum: general-purpose industrial use
- Type 303 and Type 316 Stainless Steel: corrosion, high temperature and wear resistance for washdown, food and harsh environments
- PEEK Thermoplastic: non-marring and chemical resistant where metal contact is undesirable
Thread sizes, connection types, and mounting options are selected to integrate seamlessly with existing compressed air systems.
Technical Highlights
Engineered air nozzles and safety air guns that control blowoff noise, air use and dead-end pressure at the source.
Engineered Multi-Port Airflow Design
Precision-machined outlet geometries distribute compressed air through multiple ports, reducing turbulence and high-frequency noise compared to open pipe discharge.
Measured Sound Levels Near 74 dBA
Open pipe blowoffs often exceed 100 dBA. EXAIR measured 74 dBA from a Super Air Nozzle at 80 PSIG, and its VariBlast Precision guns measure 58 to 75 dBA depending on the nozzle.
Air Amplification Technology
Many designs entrain surrounding ambient air, increasing effective airflow while using less compressed air.
Dead-End Pressure Safety Compliance
Integrated safety features prevent hazardous pressure buildup when airflow is blocked, aligning with OSHA safety guidelines.
Reduced Compressed Air Consumption
Controlled airflow patterns deliver targeted blowoff, often reducing air usage compared to drilled fittings or open pipes.
Wide Range of Spray Patterns & Configurations
Includes point-source, flat fan, wide-pattern, and high-force designs to match specific process requirements.
Designed for Continuous Industrial Duty
Robust construction supports high-cycle operation in manufacturing, machining, packaging, and process environments.
Technical Data &
Product Literature
Can't find what you need?
Contact Us or call us at (248) 289-1123 during our normal business hours (Mon-Fri, 8:00AM to 5:00PM ET) to speak directly with a noise control expert.
EXAIR® Safety Air Guns
EXAIR® Safety Air Guns Catalog
EXAIR® Air Nozzles
EXAIR® Air Nozzles Catalog
EXAIR® Super Air Knife
EXAIR® Air Knives Catalog
Support Beyond the Product
Installation coordinated in select regions
Engineering consultation to ensure proper material selection
Custom sizing and integration with other Memtech Acoustics systems
Replacement nozzles and parts available
Frequently Asked Questions (FAQs)
What is a safety air nozzle?
A safety air nozzle is an engineered compressed air outlet that pulls in surrounding air, so it blows hard with less compressed air and lower sound levels. Its design means the airflow cannot be dead-ended, which meets OSHA 1910.242(b).
How much lower will sound levels be after switching to engineered air nozzles?
Open pipe blowoffs often exceed 100 dBA. In EXAIR’s test at 80 PSIG, a Super Air Nozzle measured 74 dBA, and VariBlast Precision guns measure 58 to 75 dBA depending on the nozzle. Your result depends on supply pressure, nozzle model and the process, so Memtech Acoustics can measure before and after.
What is OSHA 1910.242(b), and how do safety air nozzles help with compliance?
OSHA standard 1910.242(b) prohibits the use of compressed air for cleaning purposes at pressures exceeding 30 psi static when the nozzle outlet can be blocked (dead-ended). EXAIR Safety Air Guns and engineered nozzles are designed so that airflow cannot be dead-ended, eliminating the risk of hazardous pressure injection injuries. Using compliant nozzles is typically one of the most straightforward steps a facility can take to bring compressed air workstations into OSHA compliance.
Will switching to safety air nozzles reduce my compressed air consumption?
Yes, in most cases. Many engineered nozzle designs use air amplification technology, entraining surrounding ambient air to increase effective blowoff volume while consuming less compressed air from the supply line. Replacing open pipes and drilled fittings with engineered nozzles often reduces compressed air usage noticeably, which can lower energy costs and reduce compressor load over time.
What materials are your air nozzles and safety air guns available in?
Zinc-aluminum alloy or aluminum for general use, Type 303 or Type 316 stainless steel for corrosive, washdown, food and pharmaceutical environments, and PEEK thermoplastic where parts must not be marred or chemicals are present. Thread sizes are matched to your existing compressed air lines.
What blowoff applications are these products best suited for?
Engineered air nozzles and safety air guns are widely used across manufacturing for part cleaning and blowoff, chip and debris removal in CNC machining and metalworking, drying after wash or rinse operations, cooling of components or processes, and conveyor and material handling systems. They are also common in food, beverage, and pharmaceutical processing where hygiene and personnel safety are priorities.
How do I know which nozzle is right for my application?
Selection depends on several factors: supply pressure, required blowoff force, spray pattern (point, flat fan, wide area), part geometry, and any environmental constraints. Memtech Acoustics' application engineers can review your process conditions and recommend the appropriate EXAIR product configuration, including nozzle size, material, and mounting arrangement.
Does Memtech Acoustics provide installation support or on-site consultation for compressed air noise control?
Yes. Installation is coordinated in select regions, and engineering consultation for product selection is available anywhere. Memtech Acoustics can fold air nozzle upgrades into a broader noise control program alongside enclosures, source treatments and hearing conservation.
Are safety air nozzles OSHA approved?
OSHA does not approve products. It sets the rules: 1910.242(b) for dead-end pressure and 1910.95 for noise exposure. EXAIR nozzles and safety air guns are designed so the airflow cannot be blocked, and EXAIR states they meet both requirements.
Which safety air gun is best for a CNC machine or machine shop?
For chip and coolant blowoff, start with a gun that takes a chip shield: the VariBlast Precision and Compact (force up to 8.1 ounces and 1 pound) or the Soft Grip and Heavy Duty (force up to 3.3 pounds). We confirm the choice against your supply pressure and parts.
Which air nozzle has the lowest sound level?
Smaller nozzles measure lower. EXAIR’s Atto Super Air Nozzle measures 58 dBA at 80 PSIG, with less blowing force. The right choice balances force against sound level for the task.
