Acoustic wall Systems
Acoustic Wall Panels for Superior Noise Control & Design Flexibility
Engineered to deliver exceptional sound absorption and pleasing visual impact for commercial, industrial, and institutional spaces.
Premium Acoustic
Foam Panel Systems
Acoustic wall panels are designed to absorb sound, not block it. While barriers such as noise walls or mass loaded vinyl (MLV) stop noise from passing between spaces, wall panels reduce the sound energy reflected from the walls.
By absorbing reflections off hard surfaces, panels reduce reverberation time, improve speech intelligibility, and create a more comfortable acoustic environment.
Acoustic panels are essential for spaces where clear communication and reduced ambient noise are critical, including offices, classrooms, manufacturing floors, healthcare facilities, and hospitality venues.
At Memtech, our panels are engineered with high-performance materials and tested to deliver highly effective sound absorption with an NRC rating up to 1.05. Whether you need to control echo in a large auditorium or improve focus in an open office, our wall panels offer performance with architectural-grade aesthetics.
By absorbing reflections off hard surfaces, panels reduce reverberation time, improve speech intelligibility, and create a more comfortable acoustic environment.
Acoustic panels are essential for spaces where clear communication and reduced ambient noise are critical, including offices, classrooms, manufacturing floors, healthcare facilities, and hospitality venues.
At Memtech, our panels are engineered with high-performance materials and tested to deliver highly effective sound absorption with an NRC rating up to 1.05. Whether you need to control echo in a large auditorium or improve focus in an open office, our wall panels offer performance with architectural-grade aesthetics.
Key Applications
Common places where acoustic foam panels are used in.
Anechoic Chambers
Testing facilities
Manufacturing Facilities
Containing sound from conveyors or fillers
Restaurants
Suppress echo and improve speech clarity
Recording Studios
Professional-grade acoustic treatment for any studio
Cleanrooms
Washable curtain walls around bottling or mixing lines
Foam Panel Types & Variations
Acoustic wall Systems
SONEX® Valueline
Subtle in appearance yet highly effective, these direct-apply panels made of WILLTEC® foam provide an NRC of 0.75–1.05 across mid-range frequencies (500–1,000 Hz) to enhance speech and reduce echo.
Performance Highlights:
- Sculpted panel surfaces with dynamic contours that capture light and shadow add refined visual texture without overwhelming the space
- NRC of 0.75 (1-½″) to 1.05 (2‑½″) depending on thickness
- Constructed from lightweight, open-cell WILLTEC™ melamine foam. Class 1 (A) fire-rated per ASTM E84, and UL 181 mold-proof
- Available sizes: 24″ × 48″ standard, custom up to 48″ × 96″; thickness: 1‑½″, 1‑7/8″, 2‑½″ plus custom options
- Finishes: natural white/grey, water-based acoustic coatings in standard, premium, or custom colors
- Ideal for manufacturing floors, schools, pools, etc.
Acoustic wall Systems
SONEX® Pyramid
Featuring an extended pyramidal surface that increases the effective absorption surface area, these panels maintain an NRC between 0.75 and 1.05. Offered in patterns, they’re suitable for direct-apply or suspended-grid applications in recording spaces, offices, museums, and high-traffic interiors.
Performance Highlights:
- High sound absorption across mid-to-high frequencies
- Class-A fire performance and safe material construction: open-cell WILLTEC® melamine foam, fiber-free, meets ASTM E84 flame spread & smoke density requirements
- Flexible installation & finish options: standard 24" × 24" panels, multiple thickness options, choice of natural or water-based coated finishes in a variety of colors; glue-up or suspended grid applications for walls or ceilings
Acoustic wall Systems
WILLTEC™ Flat Sheet Panels
Economical and versatile, these glue-to-install or adhesive-backed foam panels come in flat or optional convoluted surfaces, with customizable edge profiles. Lightweight yet effective, they're ideal for cost-sensitive installations in showrooms, offices, and general commercial spaces.
Performance Highlights:
- Form & Finish: Slim, smooth glue-up panels of melamine foam, available in custom colors or natural grey/white
- Sizes: Panels up to 48″ × 96″; shapes include circular, triangular, trapezoidal, or custom; thickness from 1″–4″
- Acoustic Data: NRC ranges from 0.60 (1″), 0.90 (2″), up to 1.05 (3″); all Type A ratings
Acoustic wall Systems
SONEX® Clean
Made using WILLTEC® foam encapsulated in vinyl, these washable panels meet USDA/FDA sanitary standards and maintain Class 1 fire rating. Designed for food prep, bottling, and cleanroom environments, they reduce reverberation while being easy to clean/sanitize.
Performance Highlights:
- Panels size: 24″ × 48″; Tiles: 24″ × 24″ or 24″ × 48″; Baffles: 24″ × 48″; all 2″ thick
- Available in 16 standard colors
- Ideal for food prep, healthcare, bottling, and sterilized environments where hygiene is paramount.
Acoustic wall Systems
SONEX® One
Economical and versatile, these glue-to-install panels come in flat or optional convoluted surfaces, with customizable edge profiles. Lightweight yet effective, they're ideal for cost-sensitive installations in showrooms, offices, and general commercial spaces.
Performance Highlights:
- Design & Performance: Softly sculpted surfaces absorb and diffuse sound waves. NRC ranges from 0.85 to 1.10, delivering effective results
- Fire & Finish: Class 1 fire-rated; available in natural or HPC-coated textures with beveled edges for visual refinement
- Dimensions & Mounting: Standard 24″ × 48″ size at 2″ or 3″ thickness
Acoustic wall Systems
Tec Wedge Foam Panels (SONEX® Super & Max)
These high-performance wedge-style panels deliver maximum sound absorption, NRC of 0.9 for 2″ panels and 1.0 for 3″ panels, combined with Class 1 fire safety. Best used in acoustic-critical environments like recording studios, anechoic enclosures, and research facilities.
Performance Highlights:
- Specific frequency absorption: e.g., at 500 Hz–1 kHz range, 2″ yields 0.85–1.05; 3″ yields up to 1.21 at 2000 Hz.
- Size & Configuration: Standard panel dimensions are 24″ × 48″, offered in 2″ and 3″ thicknesses, available in natural finishes or customizable HPC color coatings.
- Installation: Easy application with water-based adhesive. No complex framework required, enabling efficient installation on ceilings and walls.
Acoustic WALL Systems

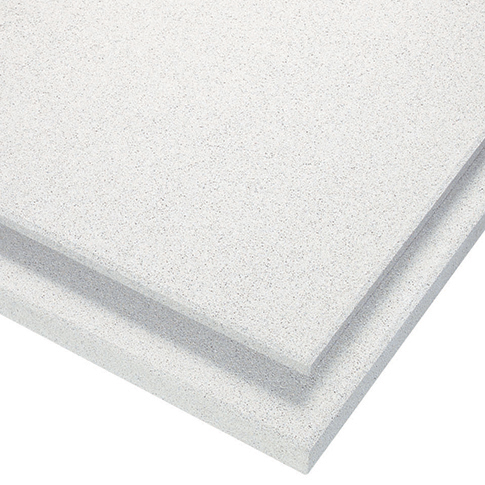

PHONSTOP™ Recycled Glass Panels
PHONSTOP™ acoustic panels deliver durable, high-performance sound absorption for demanding interior and exterior environments.
Manufactured from 100% recycled glass, these rigid, non-combustible panels absorb sound across a broad frequency range while withstanding moisture, weather, and high-impact conditions.
Designed for direct-apply wall and ceiling installations, PHONSTOP panels are ideal for transportation infrastructure, industrial facilities, public spaces, and high fire-safety applications where durability, sustainability, and acoustic performance are critical.
Manufactured from 100% recycled glass, these rigid, non-combustible panels absorb sound across a broad frequency range while withstanding moisture, weather, and high-impact conditions.
Designed for direct-apply wall and ceiling installations, PHONSTOP panels are ideal for transportation infrastructure, industrial facilities, public spaces, and high fire-safety applications where durability, sustainability, and acoustic performance are critical.
Performance Highlights:
- NRC up to 0.90 for broad-spectrum noise and reverberation control
- 100% recycled glass construction—fiber-free and non-combustible
- Class A fire performance (ASTM E84: flame spread 0, smoke developed 0)
- Suitable for interior and exterior applications
- Weather- and moisture-resistant for harsh environments
- High compressive strength (165 psi) for impact-resistant performance
- LEED-compatible for sustainable building projects
PET Panel Types & Variations
Acoustic wall Systems
PET Felt
PET felt acoustic wall panels provide effective sound absorption with a clean, modern aesthetic and strong sustainability credentials.
Manufactured from recycled polyester fibers, these panels reduce echo and reverberation while adding texture, color, and visual warmth to interior spaces.
PET wall panels are lightweight, durable, and easy to install, making them a flexible solution for offices, education spaces, healthcare, hospitality, and commercial interiors where acoustic comfort and design versatility are equally important.
Manufactured from recycled polyester fibers, these panels reduce echo and reverberation while adding texture, color, and visual warmth to interior spaces.
PET wall panels are lightweight, durable, and easy to install, making them a flexible solution for offices, education spaces, healthcare, hospitality, and commercial interiors where acoustic comfort and design versatility are equally important.
Performance Highlights:
- Manufactured from recycled PET fibers, supporting sustainability goals
- Non-fibrous, low-VOC material suitable for occupied spaces
- Wide range of thicknesses, colors, and textures available
- Can be cut, shaped, and patterned for custom designs and branding
- Durable surface resists sagging, fraying, and impact damage
- Compatible with pinboard, tackable, and decorative applications
Advanced Plaster Systems
Acoustic WALL Systems
SONEX® AFS
SONEX® AFS acoustic plaster systems deliver exceptional sound absorption with a smooth, seamless architectural finish.
Designed for walls and ceilings where visual continuity matters, AFS combines lightweight open-cell melamine panels with a hand-troweled acoustic plaster to create monolithic surfaces that reduce reverberation without visible joints, grids, or perforations.
With NRC ratings up to 1.05 using thin panel profiles, SONEX AFS is ideal for lobbies, museums, performing arts spaces, offices, education facilities, and high-end commercial interiors where acoustic performance must be felt, not seen.
Designed for walls and ceilings where visual continuity matters, AFS combines lightweight open-cell melamine panels with a hand-troweled acoustic plaster to create monolithic surfaces that reduce reverberation without visible joints, grids, or perforations.
With NRC ratings up to 1.05 using thin panel profiles, SONEX AFS is ideal for lobbies, museums, performing arts spaces, offices, education facilities, and high-end commercial interiors where acoustic performance must be felt, not seen.
Performance Highlights:
- NRC up to 1.05 with thin, lightweight system profiles
- Seamless, monolithic finish—no visible joints or suspension systems
- Broadband sound absorption for speech clarity and comfort
- Large-format panels reduce joints and installation time
- Compatible with curved and complex geometries
- Custom color acoustic plaster finishes available
- Class A fire performance (ASTM E84)
Acoustic wall Systems
QuietRock® Gypsum Boards
QuietRock® sound-reducing gypsum wall panels are engineered to deliver high-performance sound isolation and fire-resistance in plaster wall assemblies without the complexity of traditional multi-layer or resilient channel systems.
QuietRock panels incorporate advanced constrained-layer damping technology to significantly reduce airborne noise transmission through partitions, eliminating the need for bulky or labor-intensive alternatives while installing and finishing like standard drywall.
QuietRock is ideal for offices, multi-family, healthcare, education, theaters, and commercial interiors where privacy, comfort, and acoustic control are required alongside code compliance and constructability.
QuietRock panels incorporate advanced constrained-layer damping technology to significantly reduce airborne noise transmission through partitions, eliminating the need for bulky or labor-intensive alternatives while installing and finishing like standard drywall.
QuietRock is ideal for offices, multi-family, healthcare, education, theaters, and commercial interiors where privacy, comfort, and acoustic control are required alongside code compliance and constructability.
Performance Highlights:
- High sound-damping performance more effective than conventional gypsum
- Installs and finishes like standard drywall, requiring no special tools or training, reducing labor and schedule risk
- Fire-resistance and acoustical ratings compatible with many UL assemblies to meet code requirements
- Can replace resilient channel and multi-layer assemblies
- Multiple panel options for a range of acoustic needs:
Technical Highlights
High-performance acoustic panels and wall systems for industrial and commercial applications.
Usable Frequency Range
Effective across speech and midrange mechanical noise bands (500–4,000 Hz)
NRC Ratings
0.75 – 1.05
Fire Rating
All products meet Class 1 (A) per ASTM E84 for flame spread and smoke development
Durability
Resistant to environmental aging; washable options available for hygienic spaces
Technical Data &
Product Literature
Foam Products
SONEX® Valueline Product Data Sheet
SONEX® Pyramid Product Data Sheet
SONEX® One Product Data Sheet
WILLTEC™ Flat Sheet Panels Product Data Sheet
SONEX® Clean Panels Product Data Sheet
PHONSTOP™ Product Data Sheet
PET Products
Kirei EchoPanel Product Data Sheet
Plaster Systems
SONEX® AFS Product Data Sheet
Why Memtech Acoustics
Unlike generic off-the-shelf foam panels, Memtech’s acoustic wall systems are engineered, specified, and installed to perform optimally for your unique environment.
Here’s what sets us apart:
- Comprehensive Site Acoustic Assessments
We use Sound Level Meters (SLMs) and advanced modeling software to evaluate your space. This ensures the recommended panel system targets the most problematic frequencies and delivers measurable results. - Code & Compliance Expertise
From OSHA noise exposure limits to IBC fire safety classifications, our team ensures your installation meets or exceeds applicable standards. - Full Installation & Commissioning
Our team handles every detail, from design to project management to final fit and finish. We verify post-installation performance with follow-up acoustic testing to confirm target results have been achieved. - Proven ROI
Clients typically see 20–50% reduction in reverberation time (RT60) after acoustic treatment, as well as improved speech transmission index (STI) scores for better communication. - Fewer noise complaints
Higher productivity, and enhanced occupant comfort.
NOTE: We do not stock custom products in our U.S. warehouse.
Ask us about lead times for your project.
Ask us about lead times for your project.
Support Beyond the Product
Installation assistance available for Michigan and Great Lakes region clients
Engineering consultation to ensure proper material selection
Custom sizing and integration with other Memtech acoustic systems
Replacement panels and parts available for future reconfiguration
Maintenance & Care Guidelines
For full maintenance instructions, refer to our downloadable care guide.
Lightly wipe vinyl surfaces with mild cleaning solution
Avoid power washing or full immersion
HVAC filtration and regular air cleaning extend product life
Foam core may absorb liquids if outer surface is breached—inspect periodically
